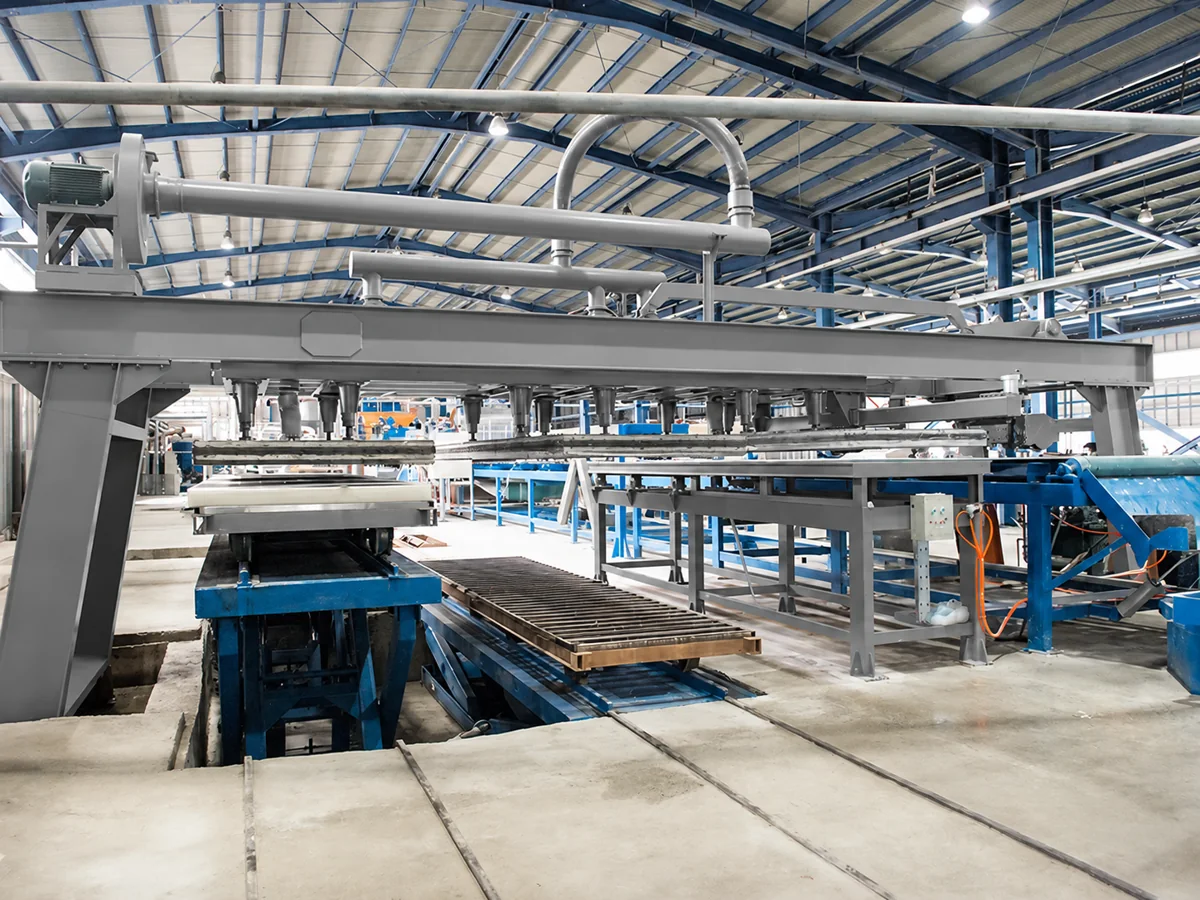

Calcium Silicate Board Production Line
WUXING PRODUCTION EQUIPMENT
Calcium Silicate Board Production Line
Equipment for calcium silicate board preparation, forming, curing and finishing, configured around the board specification and output you need.
- Slurry preparation and forming equipment
- Curing and handling systems
- Finishing equipment for consistent dimensions
PRODUCT DESCRIPTION
Slurry preparation, board forming and steam curing
This production route combines silica and calcium materials with reinforcing fibers. Slurry is distributed onto a felt and dewatered under vacuum to form the board. Curing and finishing equipment are matched to the required density, thickness and surface quality.
Technical specifications
| Parameter | Specification |
|---|---|
| Published annual capacity range | 3–10 million m² |
| Published board thickness range | 4–20 mm |
| Forming method | Slurry process with vacuum dehydration |
| Material families | Silica source, calcium source and reinforcing fibers |
| Curing equipment | Pressurized steam autoclaves |
| Fuel options | Natural gas, coal, heavy oil or diesel |
Capacity, pressing and curing arrangements are selected for the specified board.
Production flow
Pulp preparation → Forming → Stacking → Steam curing → Edge finishing
Prepare, form, cure and finish
Storage and feeding equipment supply pulping and mixing. After vacuum forming, boards are stacked and demoulded, autoclaved, then dried and finished by sanding, cutting and edge treatment.
Select equipment for the finished board
Applications include ceiling and partition panels. Higher density and tighter tolerances can change the pressing, handling and sanding requirements. Calcium silicate and fiber cement products should be specified separately even when some equipment is shared.
Pressing and forming options
A published configuration describes a 1,600 mm forming roller and a 7,000-tonne hydraulic press. These are configuration-specific equipment sizes, not compulsory components for every plant. The selected press and autoclave arrangement should be stated in the quotation alongside the board specification they are intended to produce.
Plan your product range
Prepare a schedule of your intended board grades, dimensions and surface finishes. If several grades are planned, identify which one will account for most sales. Ask for the quotation to distinguish the initial equipment package from optional finishing equipment, and request the acceptance criteria for each finished grade in writing.
Request a project proposal
Send the following details to help us understand your requirements:
- Board thickness, density and intended use
- Available silica, calcium and fiber materials
- Annual output and preferred surface finish
- Factory dimensions and steam-supply arrangements
Technical reference information
Published configuration details used for this overview. The final technical offer defines the equipment supplied.
Frequently asked questions
What is the price of this production line?
Price is quoted for the agreed equipment scope, automation, installation support and delivery terms. No fixed price is published. Send your product specification and site information for an itemized quotation.
What is the power consumption?
Installed power and operating consumption must be confirmed in the technical offer. Ask for both the connected load in kW and estimated energy use per unit of finished product, including auxiliaries.
Is the layout drawing ready for construction?
No. The drawing is a conceptual process layout, not to scale. Foundations, clearances, utilities and equipment dimensions require a project-specific engineering drawing.
How do I request a quotation?
Send the intended product dimensions, target output, raw-material details, factory drawing and available utilities to sales@gypsumboardmachinery.com.
